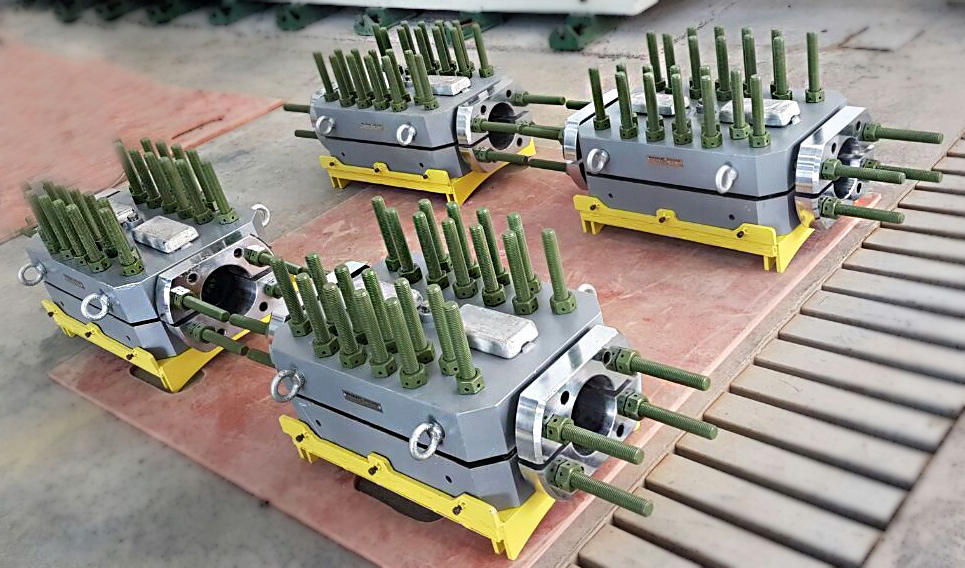

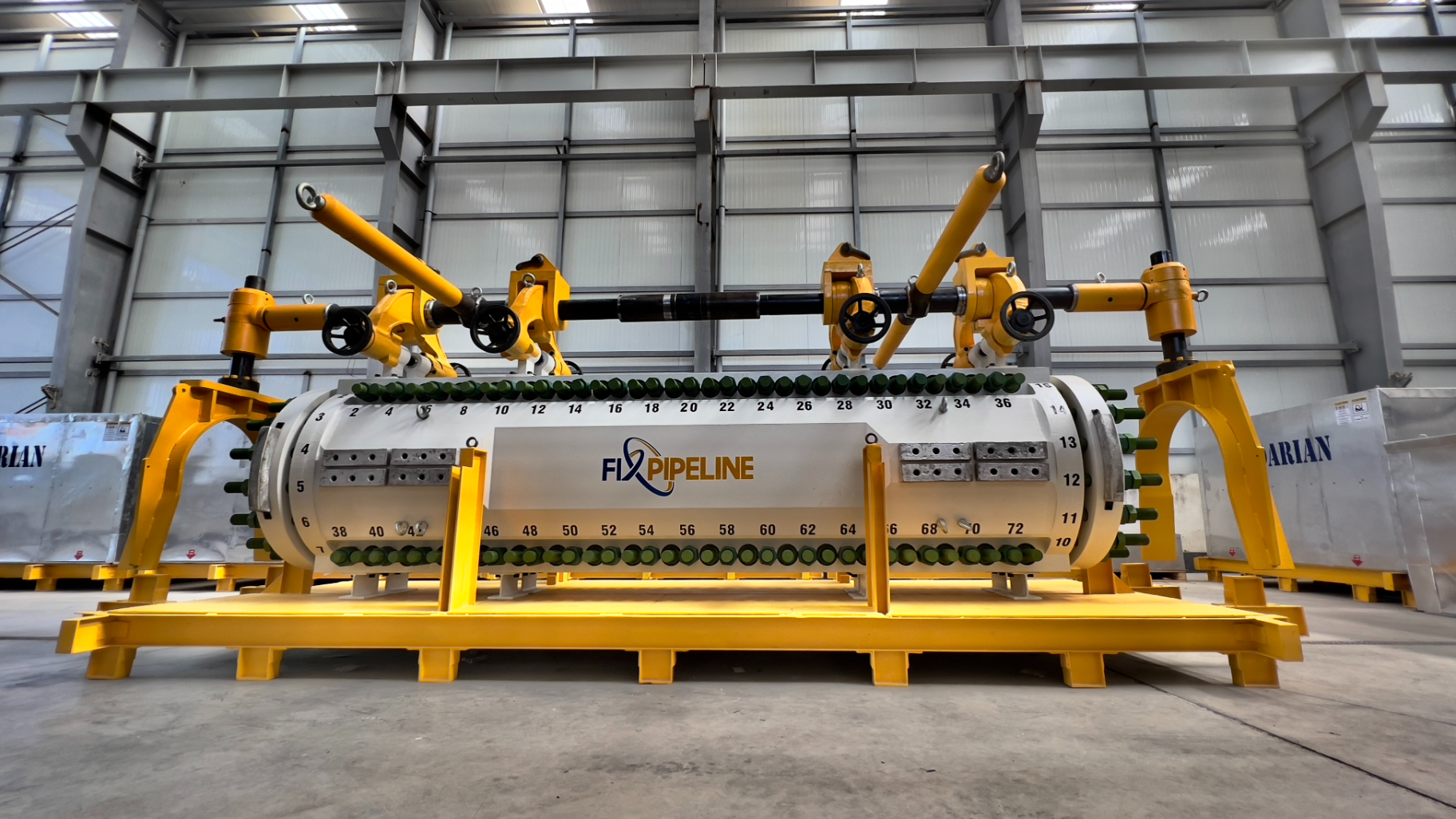

Structural Clamps

This category of clamps is designed to repair a damaged sub-sea pipeline by transferring the structural load of the damaged section onto the clamp body. The Super-Fit series is used for repairing line weakness, leak, deformation, blockage, rupture, line modifications and to increase efficiency.

Benefits

  • Sealing mechanism safe for sour gas and other corrosive materials
  • Innovative sealing energization procedure that makes installation very simple
  • Integrated body assembly for robust handling and environmental performance

Applicable Standards and Codes

  • API SPEC 6H, Specification on End Closures, Connectors and Swivels.
  • ASME Boiler and Pressure Vessel Code, Section VIII, Division 1 and 2.
  • ASME Boiler Pressure Vessel Code, Section V Nondestructive Examination .
  • ASME Boiler and Pressure Vessel Code, Section IX Welding and Brazing Qualifications.
  • NACE MR0175, Part1 & Part2 (resist sulfide stress cracking) .
  • ASME B31.8_ Gas transmission and distribution piping system.
  • ASME B31.4 Piping transportation system for liquid hydrocarbons a other liquids (General Acknowledgment).
  • DNV RP-F104 General Acknowledgment (for offshore)
  • DNV Recommended Practice RP B401, Cathodic Protection Design.
  • MSS SP-44, Steel Pipeline Flanges
  • API SPEC 5L, Specification for Line Pipe (General Acknowledgment).
  • ASME/ANSI B18.2.1, Square and Hex Bolts and Screws Inch Series.
  • Standards of materials including: A193, A194, AISI 4140, AISI 4130, A105, A 516.
  • ASME B16.5, Pipe Flanges and Flanged Fittings.
  • ASME B16.47, Large Diameter Steel Flanges.
  • ASME/ANSI B16.20, Metallic Gaskets for Pipe Flanges – Ring Joint, Spiral Wound and Jacketed.
